Aluminium Sliding Doors
Created with Pixso. Heat Insulated Waterproof Heavy Duty Exterior Aluminium Sliding Door

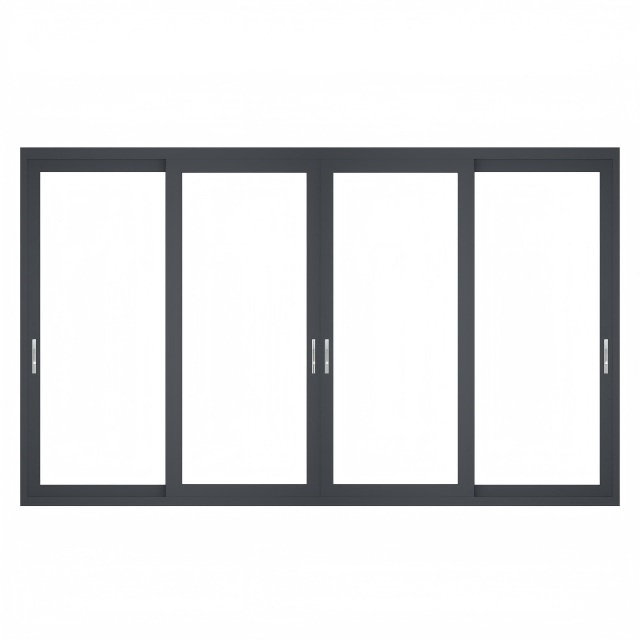

Heat Insulated Waterproof Heavy Duty Exterior Aluminium Sliding Door

Brand Name: WEINAS
Model Number: WEIGAO SD
MOQ: 4 Square Meters
Price: USD65-105 Per Square Meters
Delivery Time: 25-35 Days
Payment Terms: T/T
Detail Information
Place of Origin:
Foshan, Chian
Certification:
AS2047
Name:
Heavy Duty Sliding Door
Material:
Aluminium Alloy 6063-T5, Tempered Glass
Profile Thickness:
3mm(Panel), 2.5mm(Rail)
Glass:
Double Glass 5mm+15A+5mm
Panel:
Frame Width 68mm, Panel Thickness 35mm
Wall Occupied:
91mm(2 Tracks), 135mm(3 Tracks)
Screen Material:
Stainless Steel 304
Color:
Grey, Black, Brown, White, Wood Grain
Open Type:
Sliding
Advantages:
Thermal Insulated, Waterproof
Packaging Details:
Foam, Poly Bag, Wooden Case
Supply Ability:
2000 Square Meters Per Month
Highlight:

insulated aluminium patio doors

,

insulated aluminium sliding doors

,

heavy duty aluminium patio doors

Product Description

Heat Insulated Waterproof Heavy Duty Exterior Aluminium Sliding Door


Product Description:

First of all, heavy duty sliding door is a kind door which has high weight panel and high strength structure. Thickened and widened aluminium profiles are used as frame material (wall thickness is usually more than 1.8mm, even up to 2.0mm or thicker). Internal structure is even stronger. Equipped with a heavy-duty sliding system (such as double wheels, multiple wheels, or industrial-grade pulleys with strong load-bearing) and a sturdy lower track (track width is usually wider, such as 40mm, 50mm or even wider). It can bearing the huge weight of door panels and ensure long term smooth pushing and pulling.

Heavy duty sliding door is a high-performance door system that combines multiple advantages. It is mainly used in places that require a larger opening space and have high requirements for thermal insulation, sound insulation, safety and durability.



Specifications

Product Name:

Heat Insulated Waterproof Heavy Duty Exterior Aluminium Sliding Door
Brand: WEINAS
Model: WEIGAO SD
Material: Aluminium Alloy 6063-T5, Tempered Glass
Profile Thickness: 3mm(Panel), 2.5mm(Rail)
Glass: Double Glass 5mm+15A+5mm
Panel: Frame Width 68mm, Panel Thickness 35mm
Wall Occupied: 91mm(2 Tracks), 135mm(3 Tracks)
Color: Grey, Black, Brown, White, Wood Grain
Open Mode: Sliding
Advantages: Thermal Insulated, Waterproof


Features:

  1. Super strong load bearing and long using life. Thickened profiles and heavy duty hardware system ensure the stable operation and durability of large size door panels.
  2. Excellent thermal insulation performance. The thermal break design is the core of energy saving, effectively reducing energy consumption and improving indoor comfort.
  3. Brillant sound insulation and noise reduction. Multi cavity structure, thermal insulation strips and good sealing (usually with multiple sealing strips) provide excellent sound insulation.
  4. High security performance. The heavy duty structure of heavy duty sliding door is inherently stronger and is often equipped with multi point lock and anti theft design, which has a high safety factor.
