Aluminium Casement Doors
Created with Pixso. Silent Operation Interior Aluminium Casement Door Minimalist Frame

Silent Operation Interior Aluminium Casement Door Minimalist Frame

Brand Name: WEINAS
Model Number: PYRAMID CD
MOQ: 2 Square Meters
Price: USD55-85 Per Square Meter
Delivery Time: 25-35 Days
Payment Terms: T/T
Detail Information
Place of Origin:
Foshan, China
Certification:
AS2047
Product Name:
Minimalist Frame Silent Operation Interior Aluminium Casement Door
Type:
Narrow Frame
Material:
Aluminium Alloy 6063-T5
Profile Thickness:
Panel: 2mm, Frame: 1.2mm
Glass:
8mm Tempered Single Glass
Panel:
Edge Width: 18mm, Panel Thickness: 35mm
Wall Occupied:
55mm(Single Edge Cover), 70mm(Double Edge Cover)
Hardware:
Hinges, Lock
Color:
Black, White, Grey
Advantages:
Large Lighting Area, Silent Operation
Packaging Details:
Foam, Poly Bag, Wooden Case
Supply Ability:
2000 Square Meters Per Month
Highlight:

interior aluminium casement door

,

aluminium casement door minimalist

,

interior 4 aluminium casement sliding door

Product Description

Minimalist Frame Silent Operation Interior Aluminium Casement Door



Product Description:

Minimalist frame silent operation interior aluminium casement door is a type of hinged door that swings open like a casement window. Its defining feature is a very slim, minimalist frame, which maximizes the glass area and provides an unobstructed view, allowing for more natural light to enter a space.

Key Features and Characteristics:

  1. Design and Aesthetics: The ultra-narrow frame (sometimes as thin as 16mm) gives these doors a sleek, modern, and minimalist look. This style is popular for connecting indoor and outdoor spaces, such as patios, decks, or balconies, and can also be used as interior room dividers.
  2. Material: The frame and sash are made from aluminum, a material prized for its strength, light weight, and durability.
  3. Operation: They open outward or inward on hinges, and can be configured as single doors, French doors (double doors that open from the center), or as part of a folding system.
  4. Security: Despite their slim appearance, these doors can be very secure. They often feature multi-point locking systems and can be reinforced with a steel core.
  5. Energy Efficiency: A key consideration for aluminum doors is their thermal performance, as aluminum is a good conductor of heat. To counter this, manufacturers use "thermal breaks"—insulating materials inserted into the frame—to prevent heat transfer and improve energy efficiency. Double or triple-glazed glass further enhances insulation and sound reduction.



Specifications

Product Name:

Minimalist Frame Silent Operation Interior Aluminium Casement Door
Model: PYRAMID CD
Type: Narrow Frame
Material: Aluminium Alloy 6063-T5
Profile Thickness: Panel: 2mm, Frame: 1.2mm
Glass: 8mm Tempered Single Glass
Panel: Edge Width: 18mm, Panel Thickness: 35mm
Wall Occupied: 55mm(Single Edge Cover), 70mm(Double Edge Cover)
Color: Black, White, Grey
Advantages: Large Lighting Area, Silent Operation



Applictions:

  1. Patio and Deck Doors
  2. Balcony Access
  3. Kitchen and Bathroom Doors
  4. Office Partitions
  5. Retail Store Entrances

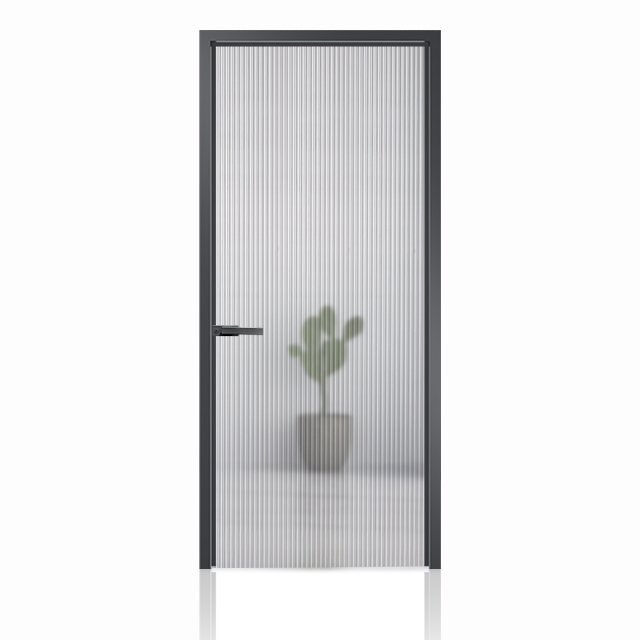

Silent Operation Interior Aluminium Casement Door Minimalist Frame 0
