Brand Name: | WEINAS |
Model Number: | HIDDEN TRACKS 128 |
MOQ: | 4 Square Meters |
Price: | USD100-125 Per Square Meters |
Delivery Time: | 25-35 Days |
Payment Terms: | T/T |

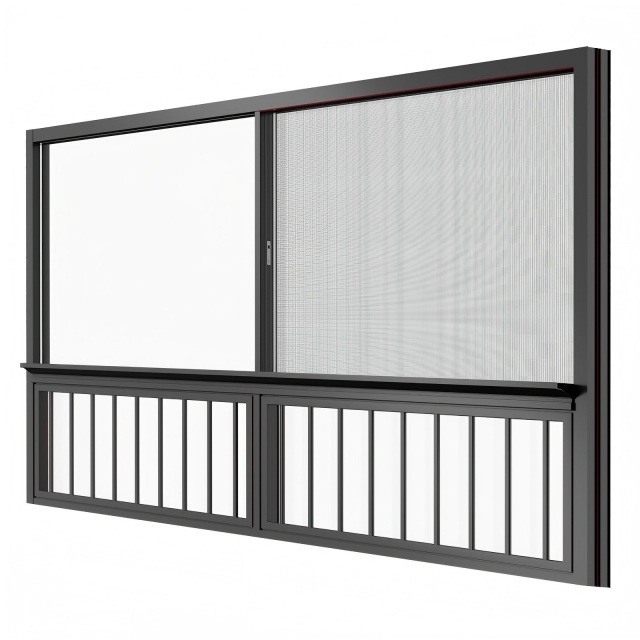

Hidden Six Tacks Thermal Insulated Exterior Aluminium Sliding Window
Product Description:
Hidden six tacks thermal insulated exterior aluminium sliding window is a type of window designed for energy efficiency and comfort. It combines the strength and durability of aluminum with "thermal break" technology to prevent heat transfer.
What is "Thermal Break" Technology? Traditionally, aluminum is a highly conductive material, meaning it easily transfers heat and cold. This can lead to significant energy loss and condensation on the window frame. A "thermal break" addresses this issue by introducing a non-metallic, insulating material (often a plastic like polyamide) between the interior and exterior sections of the aluminum frame. This material "breaks" the conductive path, significantly reducing the flow of thermal energy.
Key Benefits:
Specifications
Product Name: |
Hidden Six Tacks Thermal Insulated Exterior Aluminium Sliding Window |
Model: | HIDDEN TRACKS 128 |
Material: | 6063-T5 Aluminium, Glass |
Profile Thickness: | Panel: 2mm, Frame: 1.6mm, Upper Rail: 1.6mm, Lower Rail: 2mm |
Glass: | 5mm+16A+5mm Tempered Insulated Glass |
Panel: | 30mm(Visual Width), 30mm(Panel Thickness) |
Wall Occupied: | 128mm |
Color: | Black, Grey, Brown |
Feature: | Wide Aluminium Armrest |
Advantages: | Large Visual Area, Thermal Insulated |
