Aluminium Tilt And Turn Windows
Created with Pixso. Thermal Insulated Airtight Aluminium Tilt & Turn Windows Exterior

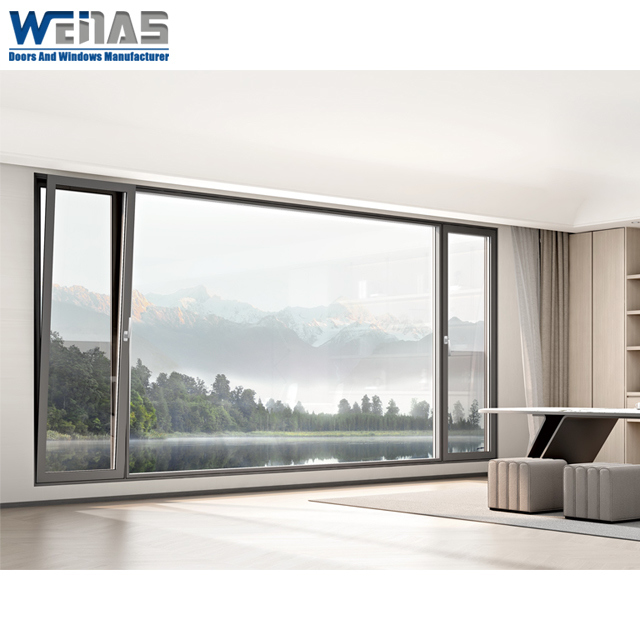

Thermal Insulated Airtight Aluminium Tilt & Turn Windows Exterior

Brand Name: WEINAS
Model Number: WEIPIN 120
MOQ: 2 Square Meters
Price: USD110-135 Per Square Meters
Delivery Time: 25-35 Days
Detail Information
Place of Origin:
Foshan, China
Certification:
AS2047
Name:
Thermal Insulated Airtight Aluminium Exterior Tilt And Turn Window
Material:
Aluminium 6063-T5, Tempered Insulated Glass
Profile Thickness:
2mm
Glass:
Double Insulated Glass 5mm+20A+5mm
Glass Leaf:
72mm(Frame Width), 58mm(Leaf Thickness)
Screen Leaf:
60mm(Frame Width), 32mm(Leaf Thickness)
Wall Occupied:
120mm
Color:
Grey, Black, Brown
Open Type:
Inward Swing, Inward Tilt
Advantages:
Heat Insulated, Interior Temperature Stabilized
Packaging Details:
Foam, Poly Bag, Wooden Case
Supply Ability:
2000 Square Meters Per Month
Highlight:

airtight aluminium tilt & turn windows

,

aluminium tilt & turn windows exterior

,

airtight tilt turn aluminium windows

Product Description

Thermal Insulated Airtight Aluminium Exterior Tilt And Turn Window



Product Description:

Thermal insulated airtight aluminium exterior tilt and turn window offers a combination of the inherent benefits of both thermal break technology and the tilt-and-turn window design. This makes them a highly versatile and energy-efficient choice for both residential and commercial buildings.



Here are the key advantages:



Superior Energy Efficiency:

  1. Thermal Break Technology: Aluminum is a highly conductive material, meaning it easily transfers heat and cold. A "thermal break" is a non-metal material (often a reinforced polyamide bar) placed between the inner and outer aluminum frames. This creates an insulated barrier that significantly reduces the transfer of thermal energy.
  2. Reduced Heat Loss/Gain: In winter, the thermal break prevents heat from escaping through the window frame, keeping your home warmer. In summer, it prevents external heat from entering, keeping your space cooler.
  3. Lower Energy Bills: By minimizing the need for heating and cooling systems, these windows can lead to a significant reduction in energy consumption and lower utility costs.

Versatile Ventilation:

  1. Tilt Function: When the handle is turned vertically, the window tilts inward at the top, creating a secure opening for controlled, gentle airflow. This allows for continuous ventilation without the security risk of a fully open window.
  2. Turn Function: When the handle is turned horizontally, the window swings open inward like a casement window. This provides a large opening for maximum ventilation and is ideal for quickly airing out a room.

Durability and Low Maintenance:

  1. Exceptional Strength: Aluminum is a robust and durable material with an excellent strength-to-weight ratio. It is resistant to warping, swelling, and corrosion.
  2. Long Lifespan: The inherent strength and resistance to external elements mean these windows have a long lifespan, often exceeding 20 years, with minimal wear and tear.
  3. Low Maintenance: Unlike wood, aluminum frames do not require painting or extensive upkeep to maintain their appearance and integrity. They are resistant to rust and do not rot.



Specifications

Product Name:

Thermal Insulated Airtight Aluminium Exterior Tilt And Turn Window
Brand: WEINAS
Model: WEIPIN 120
Material: Aluminium 6063-T5, Tempered Insulated Glass
Profile Thickness: 2mm
Glass: Double Insulated Glass 5mm+20A+5mm
Glass Leaf: 72mm(Frame Width), 58mm(Leaf Thickness)
Screen Leaf: 60mm(Frame Width), 32mm(Leaf Thickness)
Wall Occupied: 120mm
Color: Grey, Black, Brown
Open Mode: Inward Swing, Inward Tilt
Advantages: Heat Insulated, Interior Temperature Stabilized
